Detaljan opis proizvoda
Opis

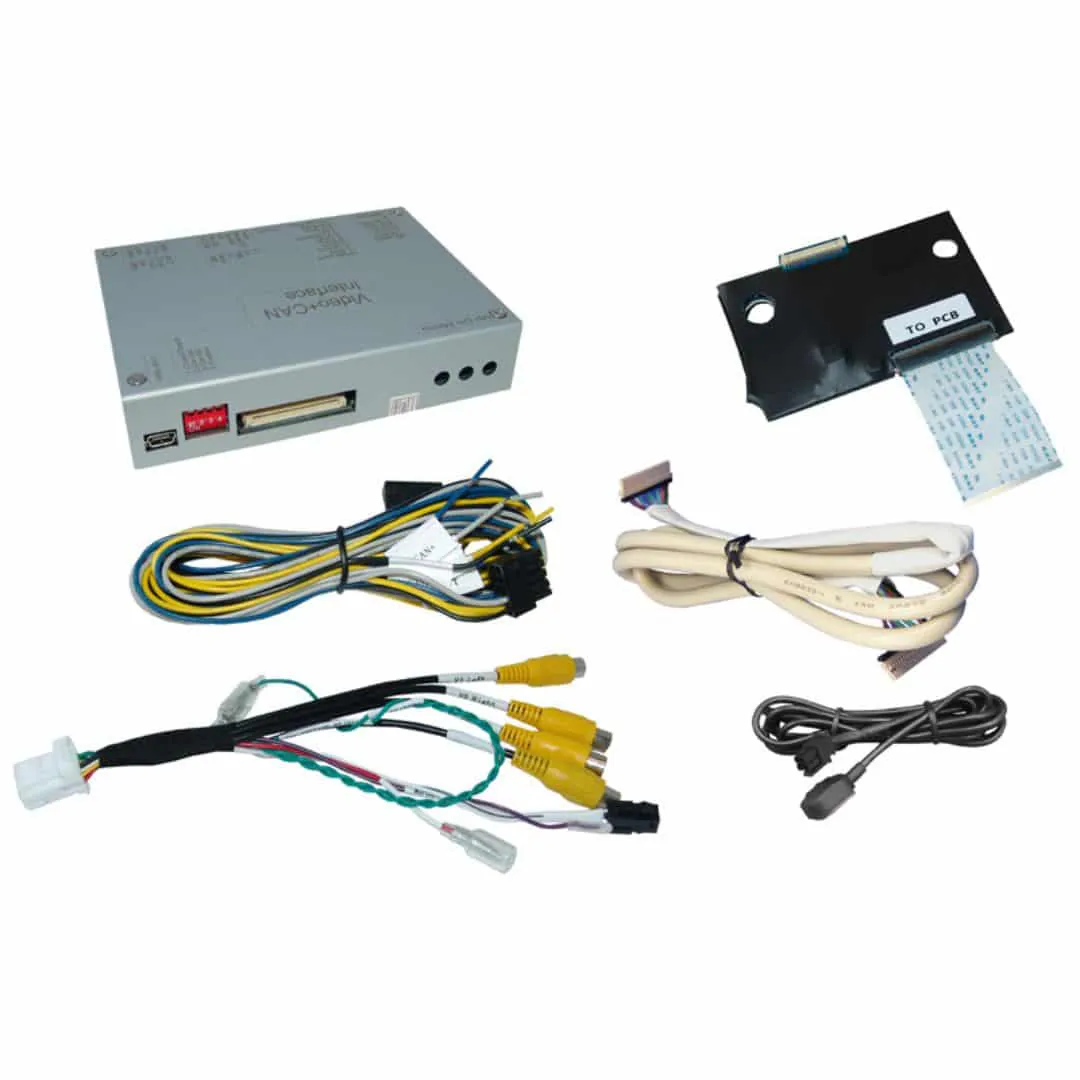

RL4-UCON8-CP iz kategorije video moduli za kamere: r.LiNK instalacijsko sučelje za stražnju i prednju kameru s automatskim prebacivanjem i 2 video izvora. Kompatibilan je s Jeep Compass MY2018- i ostalim vozilima s Uconnect Multimediasystem s 8,4-inčnim monitorom i all-in-one jedinicom s kapacitivnim dodirom.
Tehničke karakteristike:
Video-inserter for factory-infotainment systems
1 CVBS rear-view camera video-input
1 CVBS front camera video-input
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, …)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL and NTSC compatible
Kompatibilnost:
Renegade facelift model year from 2019,
Wrangler JL model year from 2019 Uconnect Multimediasystem mit 8.4 Zoll All-in-one Head-Unit mit kapazitivem Touch Ograničenja: Video only The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Inserter je potrebno ugraditi u ploču sa ekranom (Poklopac mora biti otvoren!). Tehnički podaci: Operating voltage 12V DC (7~25V) Standby current 25mA Current consumption 150mA Video input 0.7~1V Video input formats PAL/NTSC Operating temperature -40°C to +85°C Dimensions video-box 118 x 25 x 104mm (W x H x D) Konektori: Video-insertion: Ribbon cable Power and CAN-bus: Open cable ends Video-input (2x): RCA female connector Rear-view camera-input: RCA female connector Front camera-input: RCA female connector Vozača se ne smije ometati u vožnji. Prema zakonu tokom vožnje nije dozvoljeno gledanje video materijala. Tokom vožnje uređaj smije prikazivati samo prikaz sa stražnje kamere ili MP3 izbornike.
